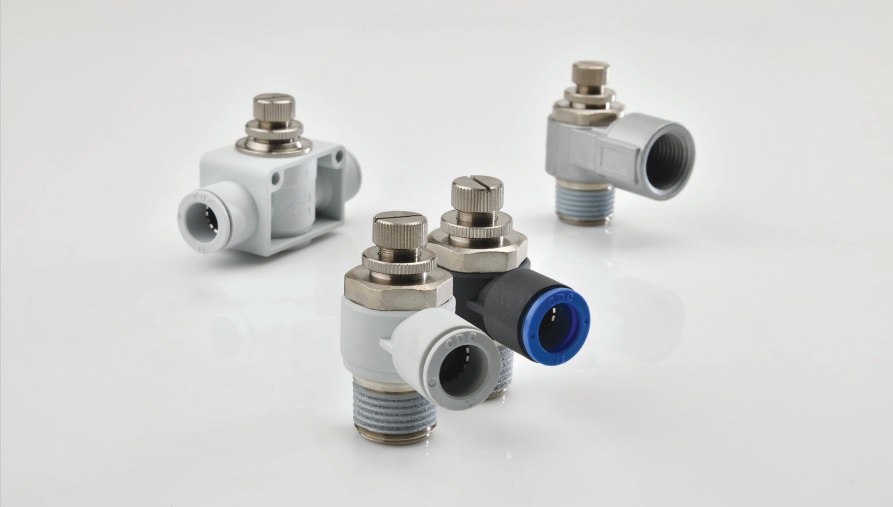

"CDC" Speed Controllers
- Can be used for fine flow control
- Main body can be rotated 360° after installation
- Tube direction and angle can be adjusted according to piping
- Fluid Type : Air
- Working Pressure : 14.2~150PSI / 1~9.9kgf/cm² / 100-990kPa
- Working Temperature : 32~140°F / 0~60°C
- Applicable Tube : Polyurethane (PU) / Nylon

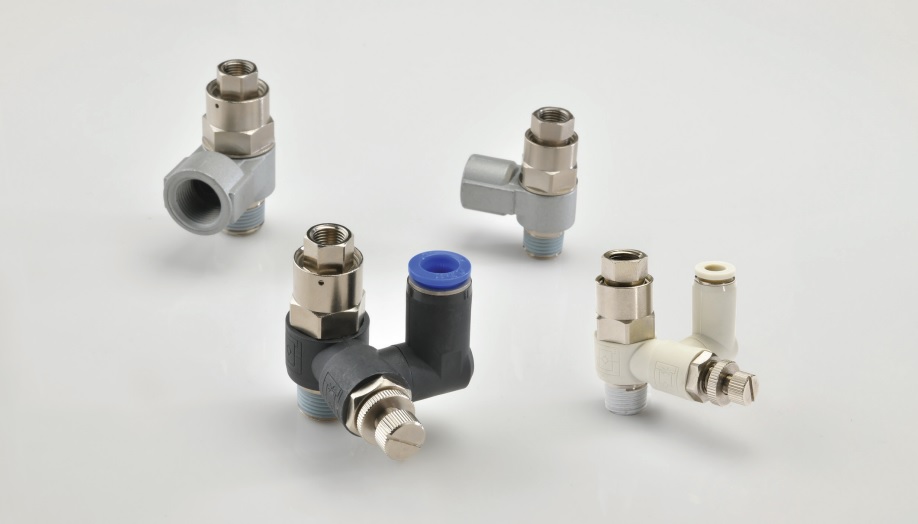

"CDC" Speed Controllers with Pilot Check Valves
- This product combines the pilot check valve and speed controller as one body
- Capable of freely setting direction for attaching the tube at any angle
- Capable of a temporary intermediate stop of the cylinder
- Fluid Type : Air
- Working Pressure : 14.2~150PSI / 1~9.9kgf/cm² / 100-990kPa
- Working Temperature : 32~140°F / 0~60°C
- Applicable Tube : Polyurethane (PU) / Nylon
