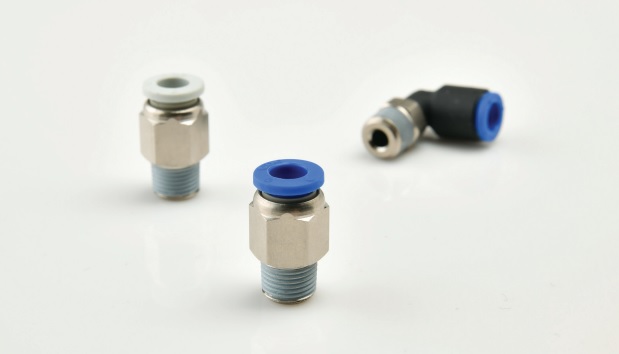

"CDC" One-touch Fittings
- Easy installation and disconnection by one touch
- More resistant to corrosion by Nickel-plated surface
- Fluid Type : Air
- Working Pressure : 0~150PSI / 0~9.9kgf/cm² / 0-990kPa
- Vacuum Pressure : -29.5 inHg / -750mmHg (-750Torr)
- Working Temperature : 32~140°F / 0~60°C
- Applicable Tube : Polyurethane (PU) / Nylon

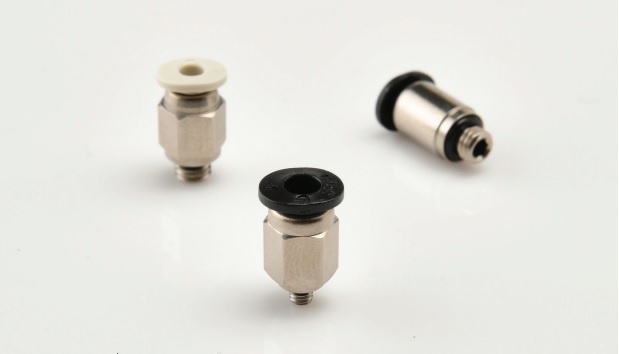

"CDC" Compact One-touch Fittings
- Easy installation and disconnection by one touch
- Suitable for small devices and narrow space piping
- More resistant to corrosion by Nickel-plated surface
- Fluid Type : Air
- Working Pressure : 0~150PSI / 0~9.9kgf/cm² / 0-990kPa
- Vacuum Pressure : -29.5 inHg / -750mmHg (-750Torr)
- Working Temperature : 32~140°F / 0~60°C
- Applicable Tube : Polyurethane (PU) / Nylon

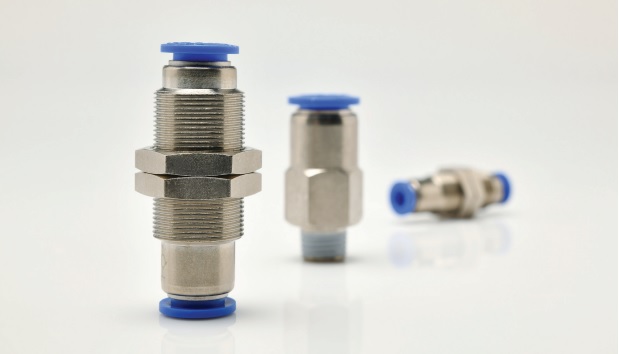

"CDC" Stop Fittings
- Easy installation and disconnection by one touch
- Built-in self-sealing mechanism
- Air does not exhaust after the removal of tubing
- Fluid Type : Air
- Working Pressure : 0~150PSI / 0~9.9kgf/cm² / 0-990kPa
- Vacuum Pressure : -29.5 inHg / -750mmHg (-750Torr)
- Working Temperature : 32~140°F / 0~60°C
- Applicable Tube : Polyurethane (PU) / Nylon

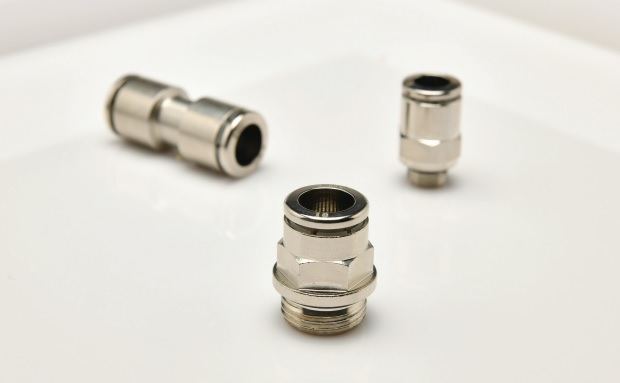

"CDC" Brass Push-in Fittings
- Compact and lightweight
- Brass parts : Electroless nickel plated
- Grease-free
- Fluid Type : Air
- Working Pressure : 0~16 bar
- Working Temperature : -20~80°C
- Applicable Tube : Polyurethane (PU) / Nylon

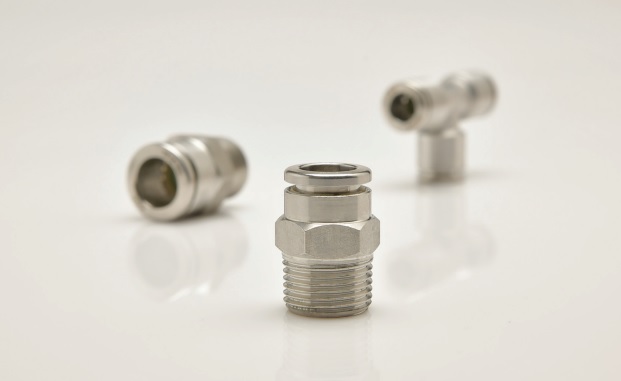

"CDC" Stainless steel (SUS316L) Push-in Fittings
- Compact and lightweight
- The metal part is SUS316L and the sealing is special FKM
- Suitable for use in the food, hygiene, pharmaceutical and chemical industries
- Fluid Type : Air, Water, Oil, Steam
- Working Pressure : 0~18kgf/cm²
- Working Temperature : -20~150°C

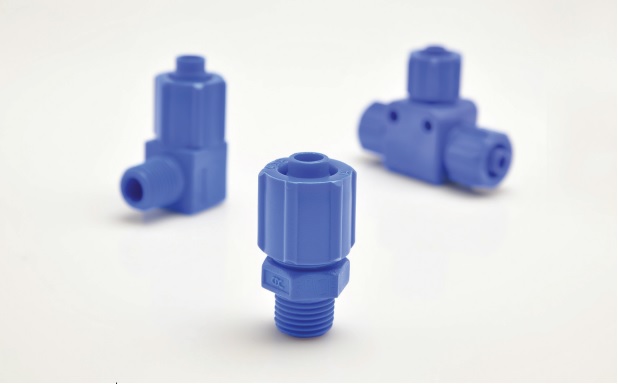

"CDC" Two-touch Fittings
- Fastening the tube made by nut tightening, which is suitable for use in a vibration environment
- Made of plastic material with semi-permanent life for excellent corrosion and chemical resistance
- Suitable for low-pressure pneumatic applications
- Fluid Type : Air
- Working Pressure : 0~150PSI / 0~9.9kgf/cm² / 0-990kPa
- Vacuum Pressure : -29.5 inHg / -750mmHg (-750Torr)
- Working Temperature : 32~140°F / 0~60°C
- Applicable Tube : Polyurethane (PU) / Nylon

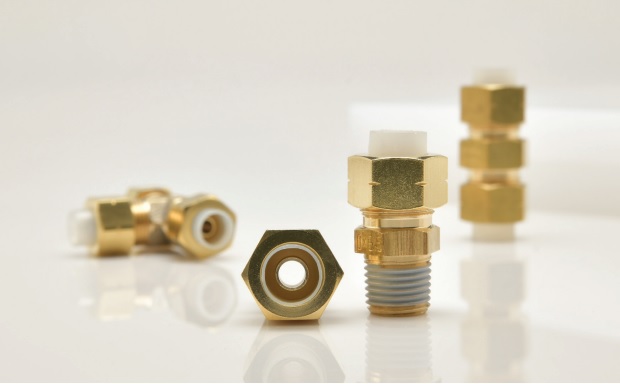

"CDC" Two-touch Fittings BSBM
- Two-touch fitting to connect and fix tube more securely
- Suitable for shock or vibration environments
- Fluid Type : Air, Water, Oil
- Working Pressure : 0~150PSI / 0~9.9kgf/cm² / 0-990kPa
- Vacuum Pressure : -29.5 inHg / -750mmHg (-750Torr)
- Working Temperature : Air -40~80°C / Water 0°C~70°C / Oil -40~80°C

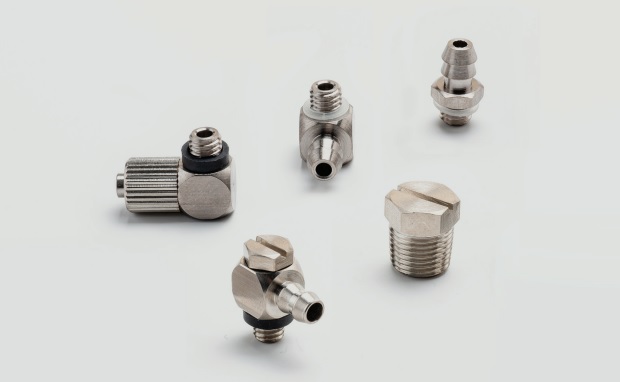

"CDC" Brab Fittings
- Compact and easy for installation
- Suitable for small devices and narrow space piping
- Fluid Type : Air
- Working Temperature : 10 bar
- Vacuum Pressure : -100kPa
- Working Temperature : -5~60°C

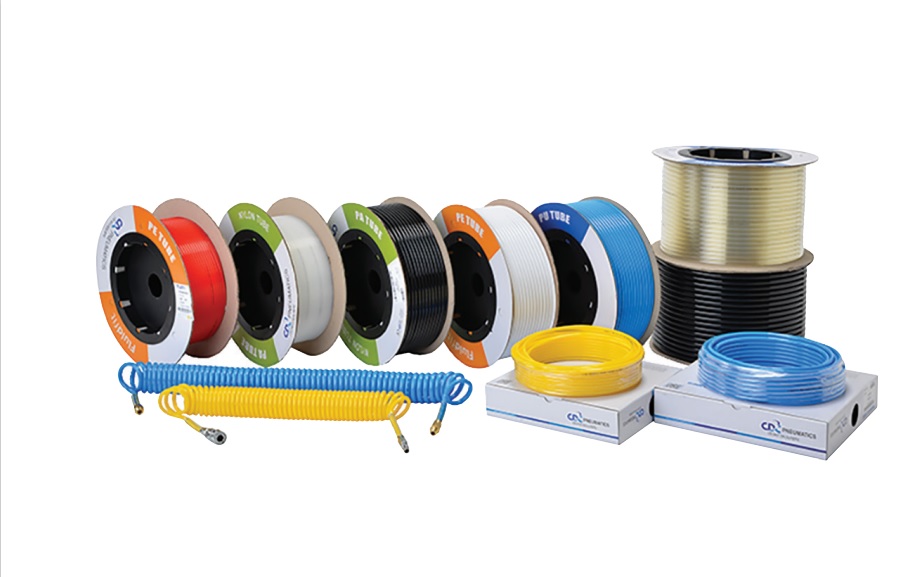

"CDC" Tubings
- Material : Polyurethane (PU) / Polyethylene (PE) / Nylon
- Light weight, excellent abrasion and chemical resistance
- Available in a varies colors
- Fluid Type : Air
- Working Pressure : 0~150PSI / 0~9.9kgf/cm² / 0-990kPa
- Vacuum Pressure : -29.5 inHg / -750mmHg (-750Torr)
- Working Temperature : 32~140°F / 0~60°C
